Camera
Image sensor	Dual-1/2.7" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	2.8mm @ F1.6 + 12mm @ F1.6
PT Angle	Pan: 340°, Tilt: 80°
Minimum Illumination	0.05Lux @ (F1.6 AGC ON), 0 Lux with IR
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	Digital WDR
BLC	Supports
Black & White Night	30m
Video & Audio
Max Resolution	1920 × 1080
Frame Rate	Max. 15fps, self-adaptive during network transmission
Video Compression	H.265 / H.264
H.265 Type	Main profile
Video Bit Rate	Ultra-HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate	Self-Adaptive
Max. Bitrate	2Mbps
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4GHz~2.4835GHz
Channel Bandwidth	Supports 20MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Wired Network	RJ45 × 1 (10M/100M Adaptive Ethernet Port)
Function
Smart Alarm	AI-powered Human Shape Detection
Customized Alert Area	Supports
Audio	Supports mic
General Function	Anti-flicker, dual-stream, heartbeat, password protection, watermark
Storage
Local Storage	MicroSD card slot (Max. 512GB)
Cloud Storage	EZVIZ cloud storage
General
Operating Conditions	-30ºC~60ºC, humidity 95% or less (non-condensing)
IP Grade	Weatherproof design
Power Supply	DC 12V / 1A
Power Consumption	MAX. 12W

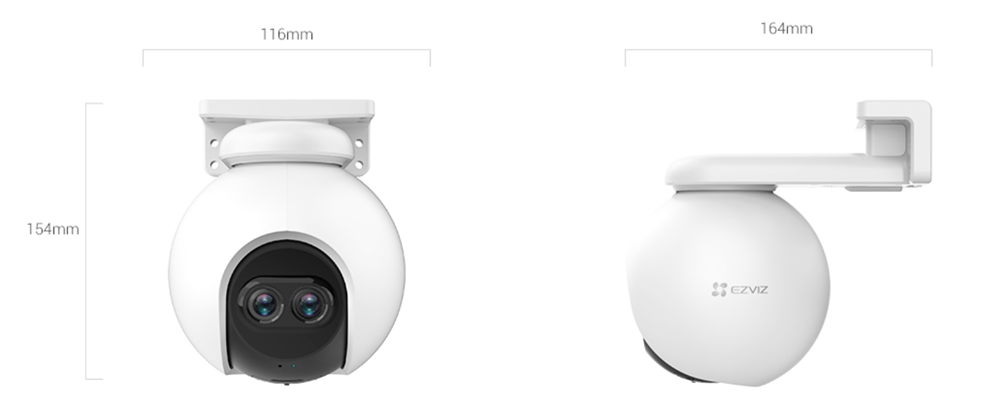

Dimensions	154 × 116 × 164mm
Packaging Dimensions	197 × 185 × 205mm
Weight	Product: 578g
	With package: 938g
In the box
In the box	- C8PF Camera
	- 1.5-Meter Power Adapter
	- Screw Kit
	- Waterproof Kit
	- Drill Template
	- Regulatory Information
	- Quick Start Guide
