EDIMAX 12-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch

EDIMAX 12-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports. Max Power Budget 110W. Supports PoE up to 200m. IEEE 802.3af/at PoE Compliant. IP Surveillance VLAN

 Features:

• Supports ONVIF Profile Q standard which is compatible with working ONVIF compliant Profiles G/Q/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
• Guaranteed PoE long distance to 200 meters.
• PoE powered devices (PD) alive check to enhance the reliability of the network. If a PD fails to respond, the GS-5210PL will reboot the PD.
• IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 110W) for powering PoE-enabled devices.
• Dual-firmware image for robust failover mechanisms. It can activate the backup firmware right away while the current one faces problems.
• IP Surveillance VLAN and Voice VLAN to enhance video and voice quality.
• 4-digit LED display showing total PoE power, available power, and power consumption.
• Auto-detection of powered devices (PD) and power consumption levels.
• Power backfeed protection to avoid damaging the PoE ports.
• DHCP snooping to protect the integrity of legitimate DHCP server and their operations.
• Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring.

Beyond Security | All Fit Together

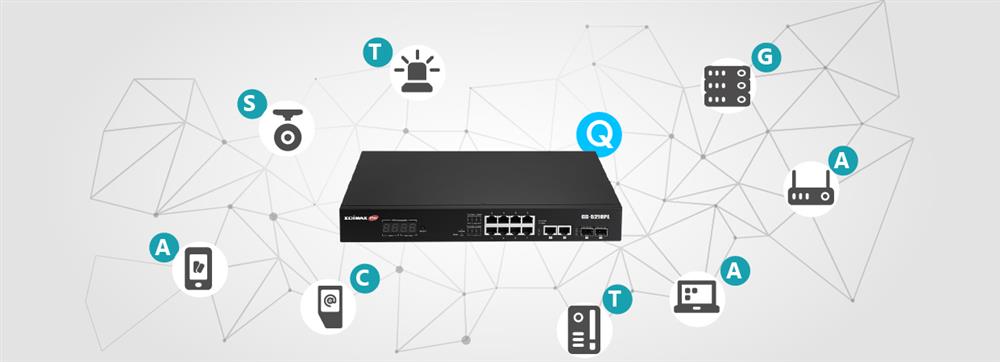

The EDIMAX ONVIF switches series greatly enhances IP surveillance network systems; it supports the ONVIF Profile Q standard, which is compatible with working ONVIF compliant Profiles G/Q/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.

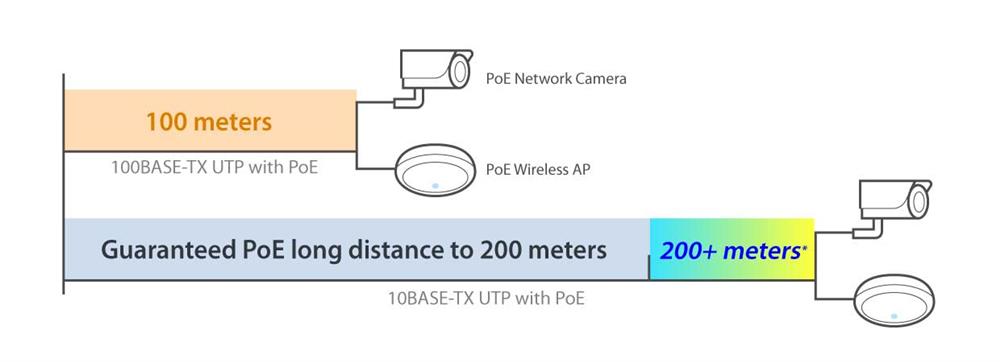

Guaranteed 200 Meters | Going the Distance

While general Ethernet switches have a distance restriction of 100 meters, the GS-5210PL long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.

4-digit LED Display | Knowing Instant Power Data

In addition to a web-based GUI to keep track of port power, the GS-5210PL features an intuitive 4-digit LED display showing its power consumption. System integrators can check the total power budget, power consumption per port, and available power left. All with a single hardware select button.

Safe Power Backfeed Protection

Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

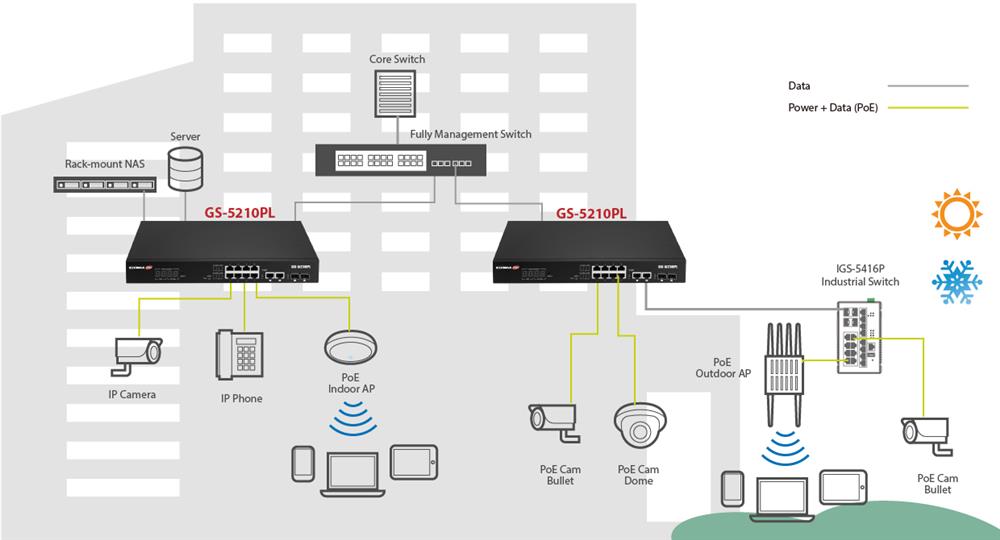

Networking Scenarios
