AXIUM Boardroom Control Kit 1 x KPC-N

Model: AXKPC-IP-IR

AXIUM Boardroom Control Kit 1 x KPC-N 1 x EX42 1 x Power Supply 4 x SIR1 Emitters

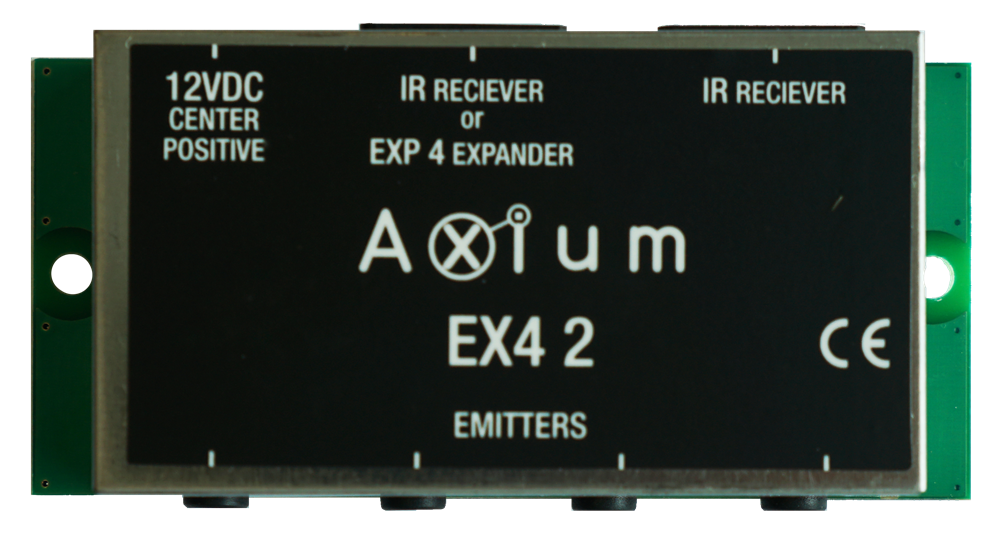

AXEX42 x1

AXIUM 4 IR out Connecting block with power supply connection IR receiver input and EXP4 input for 4 x IRFX3''s

The new AXEX42 has two RJ45 sockets. These can accommodate either 2x IRFX3 Single IR Receivers or you can connect our EXP4 Expander board to add a further 4x IRFX3 IR Receivers to the system. The EX42 also allows for up to 4x Single SIR1 Emitters to be connected. The AXEX42, has been designed to give optimal performance in any IR installation including eliminating current hogging, giving each IR port equal current distribution. In addition, EMI shielding has been Integrated to provide even greater noise rejection from the surrounding environment. With its slim profile and small footprint, the AXEX42 easily fits into small places and the RJ45 connectors makes hook-up a breeze.



FEATURES:

  • Ingenious IR return path over the CAT cable via the RJ45 connector
  • Excellent IR distribution giving equal output to all ports.
  • 4x IR Emitter Ports
  • Wide input voltage range: 8V~16V DC 50mA
  • Multiple AX-IRFX3 receivers may be connected in parallel
  • Superior EMI rejection
  • 2x RJ45 connection options
  • Dimensions:
    • Width 34mm
    • Length 72mm
    • Height 16mm

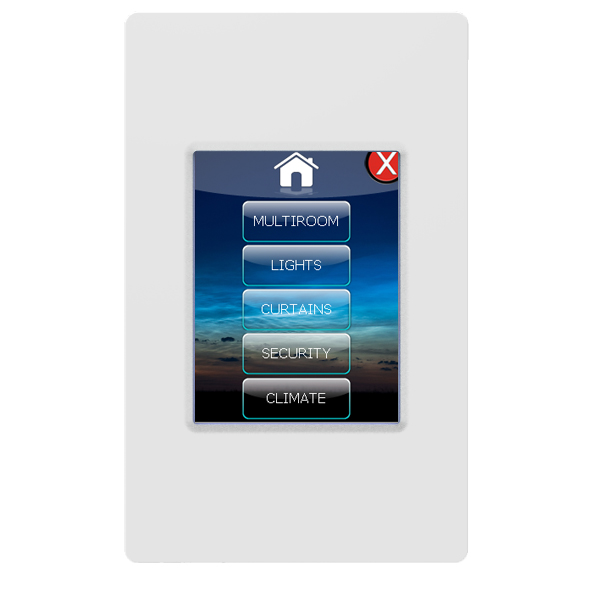

AXKPCN    x1



AXIUM KPC N 2.8'' Touchscreen LCD Keypad, fully programmable

The Axium AXKPCN keypad is a programmable 2.8” colour LCD Touch screen. Being capable of learning and sending IR commands the KPC2.8-N can be used as a standalone keypad to control virtually any IR controlled device.


This new network version can be connected via a PoE network switch or via the RJ45 port connected to an amplifier keypad port. When used with an Axium Multi-Zone Amplifier full 2-way feedback of source selection, power, mute & volume status is provided. Full 2-way RS232 and IP control are available when connected to an Axium AX-R4D/R1D RS232 router and the prebuilt Axium applets. Setup by the Axium Design Portal software, the KPC2.8-N includes a host of features to simplify programming and enhance amplifier and source equipment control.



FEATURES:

  • 2.8” LCD touch panel
    • Contrast ratio = 500:1
    • Viewing angle = 160° (H & V)
    • 240 (RGB) x 320 Dot 64K Colours.
  • Operating voltage: 12V DC ± 3V.
  • Current draw typically 60mA~100mA.
  • Memory: 8Mbytes Flash for GUI and IR commands.
  • IR learning of both modulated and pulse IR codes. Modulation frequencies up to 500kHz.
  • Large IR database supplied. IR codes using the ‘HEX’ code format may be imported into Axium Design Portal.
  • Portrait or Landscape display orientations.
  • Australian or European size and mounting options
  • Macros supporting control flow instructions.
  • User-defined button sounds: WAV file
  • Range of Skins available for a graphical user interface (GUI)
  • Single-touch Control types: Animated Buttons, Buttons with feedback, Sliders, Numeric Readouts and Applets providing control & Metadata display.
  • Support for transparent and multilayer images.
  • Background images using PNG, BMP, JPG or GIF formats may be imported and scaled.
  • Anti-aliased text with user-defined font, colour and Unicode support.
  • Polygon button outlines provide very close button spacing.
  • 2 Way RS232, Ethernet and IR routing when used with the Axium AX-R4D/R1D and supplied Applets.
  • Loads with a self-populating Nightfall design layout for AX1250 and AXMINI4 Amplifiers.
  • Wiring:
    • Up to 95m CAT5E ‘Home Run’ RJ45 terminated cable when using the legacy connection.
    • Up to 95m CAT5E, 568A terminated using the IP connection
  • Mounting for European or Australasian / USA style flush box.
  • White cover plates supplied for both European and Australasian / USA styles.
  • Current Applets:
    • Alarm Systems:
      • Arrowhead
      • ELK
    • Autonomic Media Center
    • Axium AX-800 and AX-400 zone feedback
    • Axium Media Player
    • Axium Alarm configuration
    • Clock
    • Integra
      • CD/DVD/BD Player?
      • iPod Dock*
      • Receiver incl Z1, 2, 3, & 4
    • Lighting
      • Bticino
      • C-Bus
      • Fibaro
      • Lutron
      • Luxom
      • Vantage
    • NEC Projectors
    • Request DMS
    • Schedule editor
    • Slideshow Screen Saver
    • Sonance iPort iPod Dock
    • T118RDS Tuner
    • Vantage DMM Music Server
    • Variables Display





AXPWRSUPPLY  x1

AXIUM 12Volt DC 500mA Power Supply

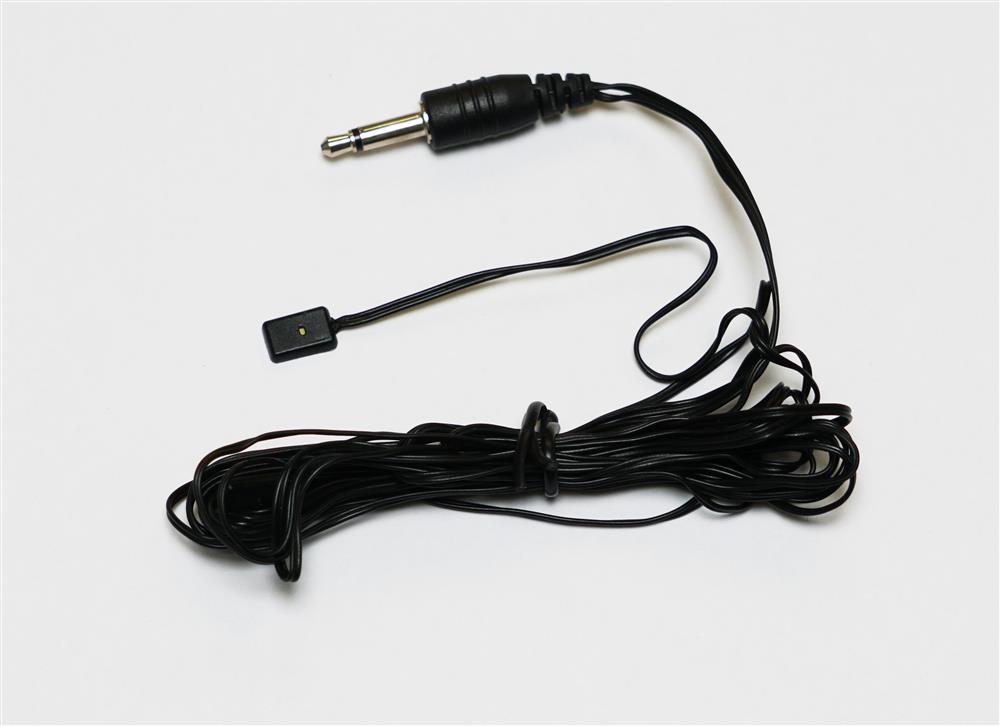

AXSIR1  x4


AXIUM AX SIR1: Single IR Emitter (Blink) - Only 2mm thick! Single High Output Blink emitter with White feedback LED.

The Axium EM series emitters needed to be small to match the AXIRFX3, so that is how we made them, tiny discrete and effective. Each model either uses a non-blinking infra-red LED with high output or a visible red LED which has lower IR emission and the advantage of visible operation. Both the diode variants are available in a Dual or Single configuration. The emitters are housed in a miniature low profile plastic injection moulded case with a 3M adhesive strip applied to the back, with additional adhesive tabs provided in the packaging. As the use of a boot to cover the emitter can assist in preventing IR system issues, we provide one for each emitter.



FEATURES:

  • Only 1.88mm high
  • Blink, single or dual emitters types
  • Emitters have high output 940nm Infrared emission
  • Visible White feedback LED
    • Black feedback cover pad supplied
  • 3m cable with 3.5mm plug
  • Micro-sized low profile with a tiny footprint
  • Strong acrylic adhesive mounts supplied including spares
  • IR dispersion angle <25°
  • Maximum current: 20mA
  • Emitter Case dimensions
    • Width - 6.1mm
    • Length- 9.4mm
    • Height - 1.88mm
